Site Preparation, Foundations, and Anchors

At a glance

What this guide helps you decide

Scope

How soil, grade, drainage, foundation type, reinforcement, edge distance, and anchors connect in a steel-building site plan.

Most useful when

• •The foundation is designed or specified for the exact building, loads, site, and jurisdiction.
• •Dimensions, elevations, reinforcement, embeds, anchors, drainage, and tolerances are coordinated before placement.

Pause and verify when

• ×A generic slab detail is being reused without checking the building and soil.
• ×Concrete is scheduled before final plans, anchor layout, drainage, and provider requirements are available.

Alternatives to keep open

• Engineered footing or grade-beam system: When loads, soil, frost, slope, or code require more than a simple slab.
• Approved ground-mounted system: For eligible structures and sites where a slab is not required.

Cost drivers

Include investigation, survey, excavation, subbase, compaction, drainage, reinforcement, forms, concrete, anchors, testing, finishing, access, curing, and correction.

Common mistakes

• Pouring from a sales sketch instead of final requirements.
• Ignoring anchor edge distance and reinforcement conflicts.
• Using slab thickness alone as proof of adequacy.

Still needs project-specific verification

• Soil, frost, drainage, flood, slope, and local foundation requirements.
• Final building reactions, footprint, elevations, anchor plan, reinforcement, and installation tolerances.

Useful next step

Match the anchoring system →

Coordinate the connections with the approved supporting base.

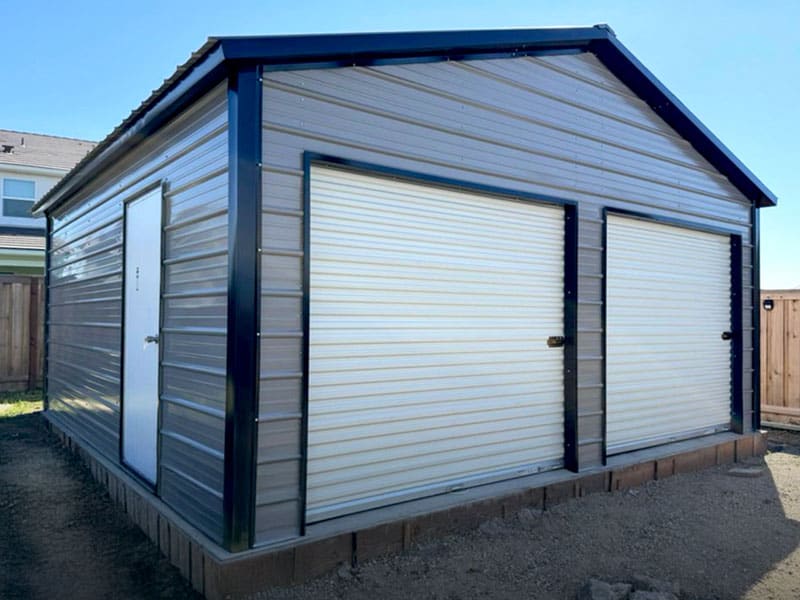

A slab, footing, pier, or grade beam is part of the structural load path. It must match the building reactions, soil, grade, drainage, use, hazard exposure, anchor layout, and approval requirements. A generic thickness or a level surface is not a foundation design.

Start with the site

Record:

• property lines, easements, utilities, access, and finished-floor elevation;
• existing grade, runoff, retaining walls, trees, and neighboring structures;
• soil, fill, organics, groundwater, expansive or collapsible conditions, and settlement concerns;
• flood, frost, seismic, wildfire, coastal, drainage, and erosion conditions;
• the building footprint, roof discharge, doors, equipment, and future interior work.

Use ground leveling and slope tolerances and on-site measurement to keep the site record separate from the structural design.

Coordinate the load path

Foundation question	Why it matters
Slab, footing, pier, or grade beam	Different systems transfer reactions into different soil and concrete conditions.
Thickness and reinforcement	Bending, cracking, edge distance, uplift, shear, and construction loads may control.
Concrete strength and exposure	Durability and anchor performance depend on the adopted design and exposure.
Soil and compaction	Settlement or weak support can affect levelness, anchors, and frame alignment.
Anchor type and layout	Edge distance, embedment, reinforcing, holes, and installation sequence must be coordinated.
Drainage and finished grade	Water can undermine the base, wet the envelope, or freeze around the foundation.

The frame supplier, foundation designer, site contractor, installer, and reviewing authority may each own different parts of this coordination. Assign responsibilities in writing.

Foundation types are site-dependent

Common approaches include slab-on-grade, thickened-edge or stem-wall foundations, strip footings or grade beams, isolated piers, and hybrid systems. The appropriate choice depends on loads, soil, frost, flood, use, finished floor, access, and local practice. Do not select a type from a building label alone.

Subgrade and drainage

Remove or address organic material, uncontrolled fill, soft zones, standing water, and contaminated or unsuitable soil as required by the site design. If fill is used, document its material, placement, moisture, compaction, and testing requirements.

Grade the surrounding site so roof and surface water do not collect at the base. Coordinate downspouts, gutters, swales, drains, retaining walls, finished-floor elevation, and neighboring runoff. A level pad can still be in a drainage path.

Concrete and anchor details

The approved design should identify, as applicable:

• concrete strength, exposure, joints, curing, and construction sequence;
• slab, footing, pier, or grade-beam dimensions;
• reinforcement, cover, laps, dowels, and openings;
• anchor type, diameter, embedment, spacing, edge distance, and torque or installation method;
• base-rail geometry, shims, grout, corrosion protection, and inspection;
• tolerances and the process for correcting an out-of-tolerance condition.

Do not pour from a sales sketch, a generic “four-inch slab” rule, or a drawing that does not show the exact building reactions and anchor layout.

Handoff checklist

Before concrete or anchors are installed, confirm that the same current documents are being used by the authority, designer, foundation contractor, building provider, and installer. Keep records of survey points, excavation, soil conditions, reinforcement, anchor placement, concrete delivery, testing, curing, and inspections.

Related references: anchoring systems, engineering calculations, delivery and installation, and structural warranties.

[!CAUTION] This guide organizes coordination questions. It does not specify a foundation, concrete mix, reinforcement, anchor, or soil treatment for a particular property.
